Understanding the Connections on a Micro USB Port
Micro USB ports have been an essential part of the tech world for years, connecting and powering various devices such as smartphones, tablets, cameras, and even some game controllers. Though newer types like USB-C are becoming more common, micro USB remains widely used, especially in older devices. But how does this small connector manage to handle everything from charging to data transfer? Let’s break down the basics of micro USB port connections.

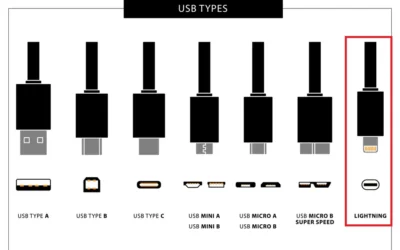

Anatomy of a Micro USB Port
A typical micro USB connector (specifically the Micro-B type) consists of five pins, each with its own designated function:
Pin 1 (VBUS) – This is the power pin. It supplies the voltage (usually 5V) needed to charge your device or power external peripherals. When you plug your charger into a micro USB port, it’s Pin 1 that delivers the power.
Pin 2 (Data –) – This pin is used for data transmission and works in conjunction with Pin 3. Pin 2 specifically transmits negative differential signals for data transfer between your device and the connected computer or accessory.
Pin 3 (Data +) – Complementing Pin 2, Pin 3 transmits positive differential signals for data transfer. Together, Pins 2 and 3 enable data synchronization, such as when you’re moving photos from your phone to your computer or syncing your contacts.
Pin 4 (ID) – This is the identification pin, and it serves a unique purpose. In most devices, this pin is not connected, but in certain cases, it’s used to differentiate between host and peripheral roles (like when your phone switches from charging mode to USB drive mode).
Pin 5 (Ground or GND) – The ground pin completes the circuit, allowing electricity to flow safely through your device. Pin 5 is essential for stabilizing voltage levels and ensuring that the device operates efficiently.
Common Applications of Micro USB Connections
Micro USB connectors are widely used for various purposes:
Charging Devices: The most common use for a micro USB port is to charge your devices. Pin 1 supplies the power, and Pin 5 ensures the circuit is complete.
Data Transfer: The combination of Pins 2 and 3 enables the transfer of files between devices, such as moving data from your phone to a computer or downloading software updates.
OTG (On-The-Go) Functionality: Some micro USB ports support USB OTG, allowing a smartphone or tablet to act as a host for USB peripherals like keyboards, mice, and storage drives. In this case, Pin 4 (ID) is crucial for distinguishing the roles of connected devices.
Troubleshooting Micro USB Issues
Because micro USB ports and cables are widely used, they’re also prone to wear and tear. Here are some common issues you might face and how to troubleshoot them:
Loose Connections: With frequent use, the port can become loose, causing unreliable connections. Ensure that the cable fits snugly into the port without any wiggling.
Slow Charging: If your device is charging slowly, the issue might be with Pin 1 (power). Check that your charger is providing the correct voltage and amperage.
Data Transfer Failures: When your device fails to sync data, it could be due to issues with Pins 2 and 3. Try using a different cable or port to see if the problem persists.
Conclusion
Despite its small size, the micro USB port is capable of handling a variety of tasks, from powering your device to transferring important data. Understanding its basic pin configuration can help you troubleshoot common problems and better appreciate the technology that keeps your devices running smoothly. Although the micro USB is gradually being phased out in favor of USB-C, its legacy in electronics is undeniable.
Whether you’re dealing with micro USB issues or looking to upgrade your device, having a basic knowledge of these connections can go a long way in enhancing your tech experience.
